Optics

Ultra Wide

Remark

Light source

LASER with 20,000hrs lifetime

Brightness (typical)

3,050 lm (Typ.) /  3,400 lm (Marketing)

Contrast

1,800:1 (native) / 10,000:1 (High Contrast Mode)

1600:1 in minimum

Brightness uniformity

JBMA : 80% (typical) / 70% (minimum)

Color uniformity

u’v’< 0.03

Resolution (native)

1920 x 720

Aspect ratio (native)

16 : 6

f / number

f/2.4

Throw ratio

0.25

Focus range

120△ ” – 140”

Projection image size. Diagonal length per native aspect ratio

Defocus / Flare

Defocus                  2.5pixel / Flare     4.0pixel

@25°C

Digital keystone

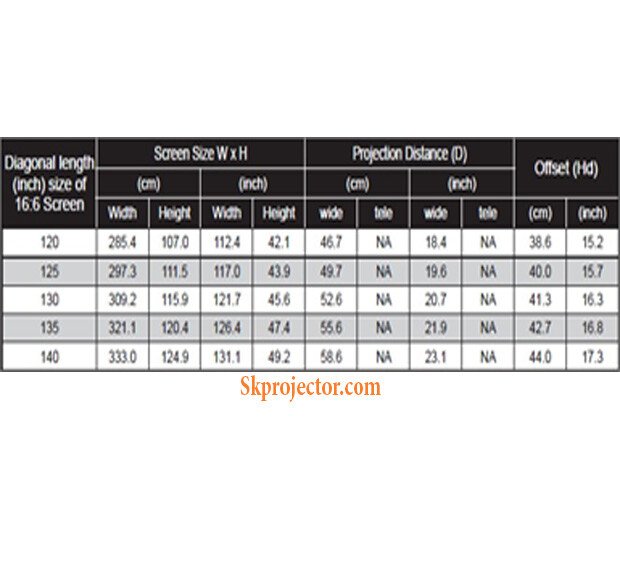

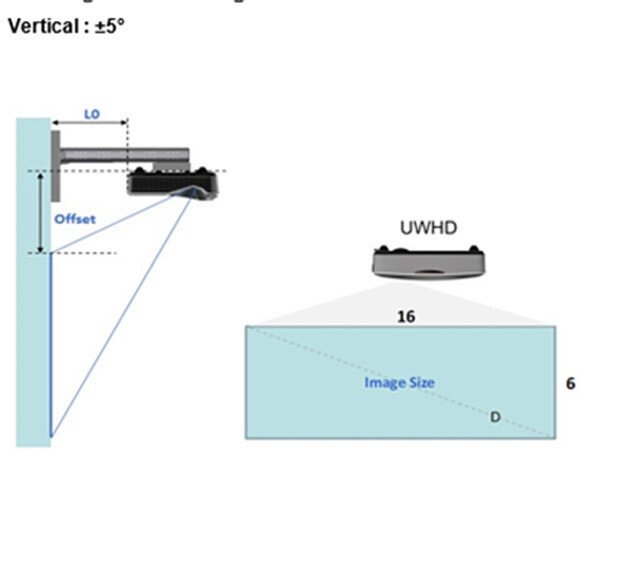

Projection Distance

Projection Offset

            D – Image size in diagonal

            L0 – Screen to back cover

            Offset – Top of image to mounting interface

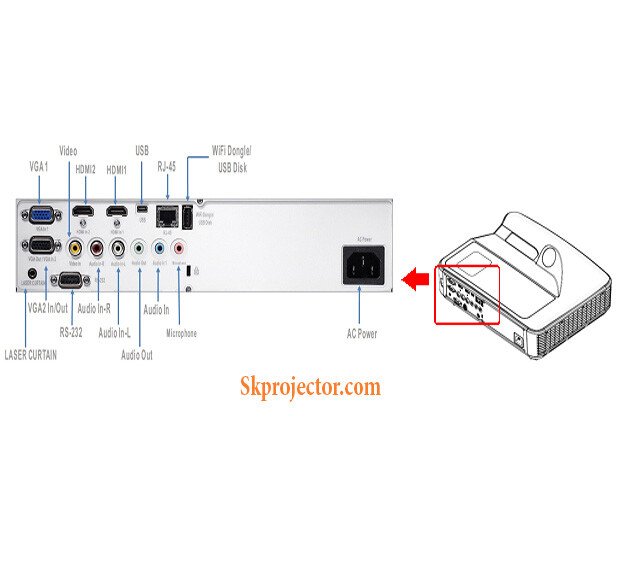

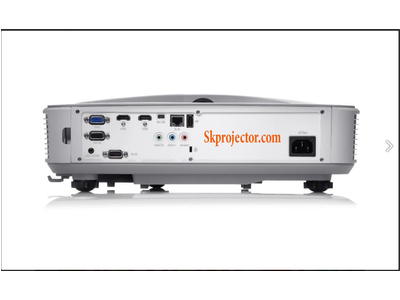

Access

UWHD

Remark

HDMI input

Qty : 2 (HDMI2 with MHL1.3 support – Only 1080p & UWHD model)

HDMI : 1.4a

HDCP : 1.3

Video Standard : 480i/480p/576i/576p/720p/1080i/1080p

PC Graphics : up to UXGA (1600x1200@60Hz)

MHL requires certificate by brand

VGA input

Qty : 2 (1 sharing with VGA output by OSD setup)

Video Standard : 480i/480p/576i/576p/720p/1080i/1080p

PC Graphics : up to UXGA (1600x1200@60Hz)

Composite input

Qty : 1 / RCA (yellow)

Video Standard : 480i/576i

VGA output

Qty : 1 (Sharing with one of VGA input by OSD setup)

Loop through VGA input

VGA audio input

Qty : 1 / 3.5mm phone jack (blue) / stereo

(dedicated to selected VGA input port)

Composite audio input

Qty : 2 / RCA-Left (white) / RCA-Right (red) / stereo

Microphone input

Qty : 1 / 3.5mm phone jack (pink) / mono

System audio output

Qty : 1 / 3.5mm phone jack (green) / stereo

RS232

Qty : 1 / DB-9 female /19200bps

Purpose : projector control

Mini USB

Qty : 1 / device mode

Purpose : for firmware upgrade (USB1.0) / interactive (USB2.0)

Interactive

Qty : 1 / 3.5mm phone jack

Purpose : dedicated to Light Curtain Touch (LCT) module connection

Option with interactive feature

RJ45

Qty : 1 / Fast Ethernet (100Base-T)

Purpose : remotely projector control (Crestron / AMX / PJ-Link)

Others : video streaming

Option with multimedia feature

Power

UWHD

Remark

Power supply

Universal AC 100-240V, 50-60Hz, with PFC input

Power consumption

Full : 335W±15% ECO : 225W±15%

@110VAC

Standby mode

1. Idle without LAN function : < 0.5W
2. Idle with LAN function : <3W

No wake-on LAN function

ErP compliant

ID

UWHD

Remark

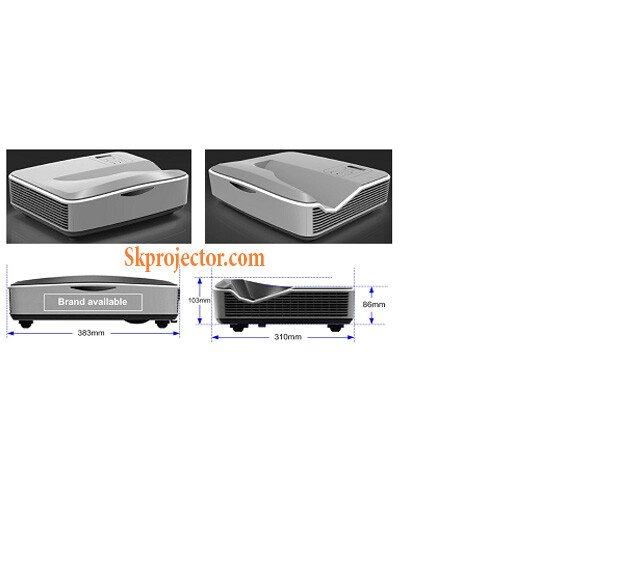

Appearance

Dimension

Width x Depth x Height = 383mm x 310mm x 86mm

Weight

Net : 5.5kg (12.1lb)
